How to install Xhorse VVDI Prog V2.1.0 software

Xhorse VVDI Prog ECU programmer 2.1.0 is developed to program multi vehicle EEPROM, MCU and ECUs. VVDI-Prog adds  pin code calculation functions for multi-brand vehicle models as well. Here is the instruction on installing V2.1.0 VVDIPROG software step-by-step.

Free download VVDIProg 2.1.0 software driver

https://mega.nz/#!O8UUgDDa!dEWkvUNYN9q-oMFg359faeSjyYZM5QASmeT-iAywYNY

Software version: V2.1.0

Language: English/Chinese

Operating system: Windows XP

How to install VVDIProg 2.1.0 software?

1) Install VVDIPROG software driver

2) Run VVDI Prog software and start programming

1) Install VVDIProg 2.1.0 driver

Insert DVD to computer

Open My Computer

Open VVDIProg2.1 (E:) DVD

Copy and paste VVDIProg folder to desktop

Connect the VVDI prog programmer with computer via USB port

Wait the system to found hardware wizard

Select “Install from a list of specific location (Advanced)”, click “Next”

Include this location in the search C:/Documents and

Settings/Adminnistrator/Desktop/VVDIProg/driver/ft232, click “OK” and “Next”

Click “Finish”

Install driver follow the previous instructions again

Select “Install from a list of specific location (Advanced)”, click “Next”

Click “Next”

Click “Finish”

Open My Computer>>Manager>>Device Manager>>Ports>>USB Serial Port (COM4) to check well communication is built

2) Run VVDIPROG V2.1.0 software

Open VVDIProg folder on desktop

Open VVDIProg software

Click “Language” tab to exchange language between English and Chinese

Select ECU type and chip type from the list

The VVDIProg software will prompt which cable/connector is going to be used

Click “Connection diagram” button

Click “New” tab

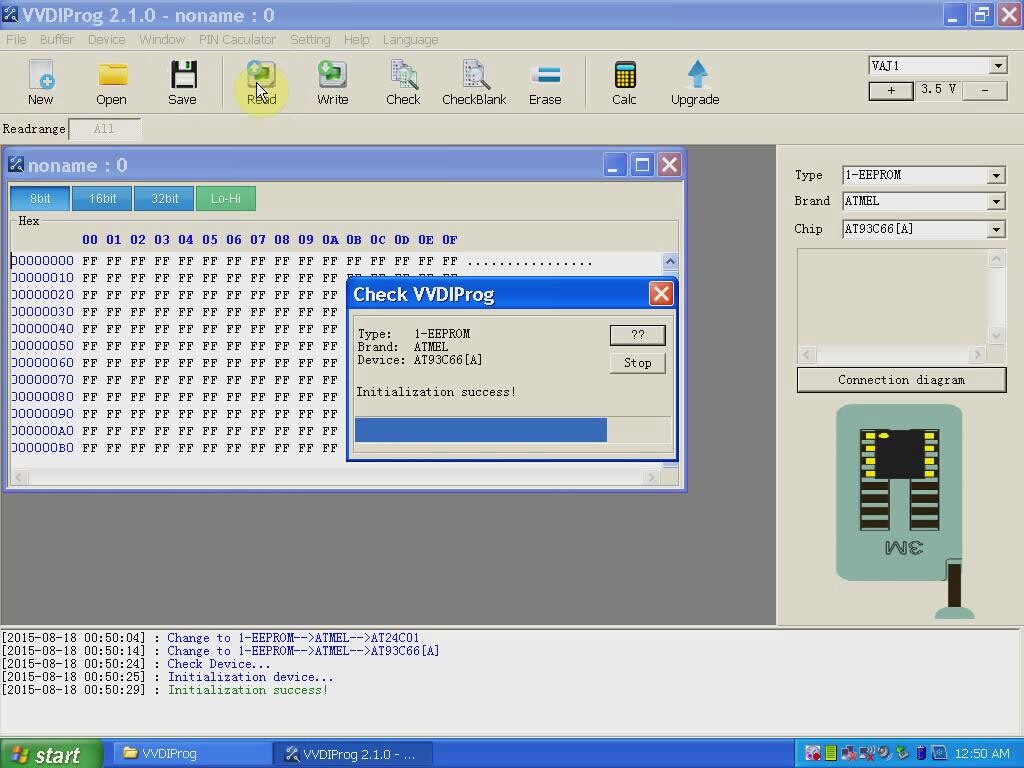

Click “Read”

The software will display EEPROM data

Click “Save”, save the bin file to desktop and name it 93c66, click Save

Create a new window

Select other ECU type and chip type

The system will also prompt which cable is about to use and the detail diagram

Select other functions and follow the system prompts.
