V2.1.4 VVDI MB BGA Tool add W204 W207 All Key Lost (Update)

Newest update: newly released VVDI MB BGA Tool V2.1.4 can support get password from W204, W207 EIS while all key lost! Following is VVDI MB BGA Tool V2.1.4 download link for you.

VVDI MB BGA Tool V2.1.4 software free download link:

https://mega.nz/#!60pXTQpa!P1wP22cbaWHuK0kfg0bBDfPzPuiqUKw8_aZht045CQg

Password: 123456

VVDI MB Tool Password Calculation Steps:

Step1. Select working key, communicate mode and chassis.

Step2. Click on “Data Acquisition”

Step3. Click on “Upload Data”

Step4. Click on “Query Result”

Note:

1. If all key lost u need 2 tokens
2. Data Acquisition needs about 2.5 hour, so please don’t perform this operation on the car.
3. Connect EIS to correct cable on the bench before Data Acquisition and please don’t connect cable to ESL.
4. If you tried but it says Data Acquisition failed– You need do the data acquisition process again when failed.

This is a user’s feedback on Xhorse VVDI MB Tool V2.1.4:

I tried it 2 times….first time Data Acquisition cost 2.5 hours…sent online to server, calculation failed….second time Data Acquisition again 2.5 hours….sent online to server, after 1 minute got the password back….

I tried calc. key dumps, wrote first dump to BE key, used in EZS/EIS…learned quickly…

I tried to use Xhorse W204 ELV emulator…success assigned…new key turn, EMU sound lock/unlock rightly…

Free download VVDI MB BGA Tool V2.1.3 (Sep 07, 2016 updated)

Look! Here is a fresh update for you. Xhorse VVDI MB BGA Tool software version has been updated to V2.1.3 today. This blog offers you free download at the following link.

VVDI MB TOOL software V2.1.3 free download link:

https://mega.nz/#!yoICiBoS!it7xwyLaAL0N77vRMsCWFeC8LfwDf2afp5zvf-HMqhY

Password: 123456

Latest VVDI MB TOOL software V2.1.3 updates information:

Require firmware V2.1.2 (Software V2.1.3 needs newest firmware, so please make sure the firmware is V2.1.2)

BENZ V2.1.3

1. Attention: All user update device to firmware v2.1.2, software v2.1.3
2. Fix bug for time out when get erase password or key file

For more Xhorse VVDI update information please keep following our blog:

http://blog.eobdtool.co.uk/

Free Download VVDI MB BGA Tool V2.1.2 (Newest)

Newest update for Xhorse VVDI MB BGA Tool! Here eobdtool.co.uk offer you free download link of VVDI MB Tool V2.1.2 and detailed update information. Hope it helps.

Free download link of VVDI MB BGA Tool V2.1.2

https://mega.nz/#!OxJDyIJb!FaSwBVau3gyXt4URl_FcaaMzcYTkJMvSQwq7MGI10Fc

Password: 123456

Update information of  VVDI MB Tool V2.1.2

BENZ V2.1.2

1. Attention: All user update device to firmware v2.1.2, software v2.1.2
2. User manual v1.6 released, overview v1.6 released
3. Support Repair KM: Menu->Special Function->KM Repair, support w204, w207, w212, w211, w166, w246, w231, w205
4. Support read/write gateway: Menu->Special Function->Read/Write CGW (ZGW)
5. Support Read/Activate blank BGA key (0CF4): Read Write Key->Read blank BGA (0CF4) EIS data
6. Support read current HASH in key (Repair key): Read Write Key->Key current HASH (Repair key)
7. Support unlock key track: EIS Tools->IR->Enable Key
8. Support another type (Continental) ISM read/write/erase
9. Bug fix

How VVDI MB BGA TOOL program new key for W212 all key lost?

Since some people still hesitate about whether VVDI MB BGA TOOL can support W212 all key lost or not. Definitely yes! Here is guide for using VVDI MB TOOL to program new key for W212 all key lost.

3 main steps for VVDI MB TOOL program new key for W212 all key lost:

• Password calculation get key password from EIS
• Read and save EIS data
• Prepare key file and write it to new key

First you should connect device OBD line to car, then connect IR adaptor to VVDI MB Tool, after that do as following steps.

Step1. Open VVDI MB Tool software, click “Password Calculation”, tick off “Lost all working key”, choose chassis “212” then click “Data Acquisition”.

Step2. Turn the IR adaptor and VVDI MB Tool’s red light will blink. Now just several minutes to wait (Data Acquisition needs about 3.5-8 minutes depends on EIS types), after that you will get a data file “VM_NOKEY_586FD7B1_1”, save this file.

Step3. Click “Upload Data” and open the data file “VM_NOKEY_586FD7B1_1”. Wait a second, it will show “Upload success”, click “Yes”.

Step4. Tick off “Auto reflash” next click “Query result”, just wait a second to VVDI MB Tool will get you the result. Meanwhile create a folder named “212 ALL KEY LOST” on desktop.

Step5. Now you can get the key password, click “Copy” and wait a second.

Click “Paste” to paste key password to EIS key information, then click “Save EIS data” and save the EIS data file to “212 ALL KEY LOST” folder on desktop.

Step6. Click “Prepare Key File”, then “Load EIS file”. Choose the EIS data file to upload.

Step7. Untick both “v041” and “v011”, click “Prepare Key File” and wait a minute. Save key file to “212 ALL KEY LOST” on desktop directly.

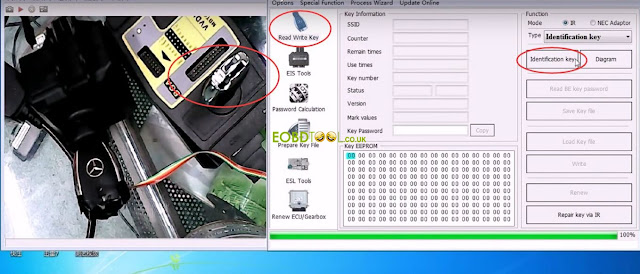

Step8. Click “Read Write Key” then insert a new blank key into VVDI MB BGA Tool slot, next click “Identification key”.

You can see status of the new key is “Unused”, then click “Load Key File”. Next click “key8…” bin file and click “Write”. Now wait for data writing success.

Step9. Click “Read EIS data” you can see there are 2 used keys: key1 and key2.

Plug out IR adaptor and insert the new key, click “Read EIS data” again there will be 3 used keys: key1, key2 and key8. It means VVDI MB BGA TOOL successfully programs a new key for W212 all key lost.

Free download Xhorse VVDI MB BGA Tool V2.1.1

Free download Xhorse VVDI MB BGA Tool V2.1.1 (Password: 123456)

Latest update news: VVDI MB BGA Tool V2.1.1 is available for you! Mate, you can check this free link to download.

https://mega.nz/#!ywRAkS5C!Imp2PyIpbIt5DxZOINn8tJUQr1HdPiR0GWEsSyKYWs8

What’s new for VVDI MB Tool V2.1.1?

1. Attention: All user update device to firmware v2.1.1, software v2.1.1
2. Add connection diagram for new NEC key adaptor
3. Support repair W204 ESL fatal error and repair old Motorola ELV. You need buy an extra adaptor for ESL
4. Bug fix

Get more information about VVDI MB BGA Tool from:

 http://www.eobdtool.co.uk/wholesale/vvdi-mb-tool.html

This is from www.eobdtool.co.uk website technical support:Free download Xhorse VVDI MB BGA Tool V2.1.1

How VVDI MB BGA tool renew EIS and replace ESL for Mercedes Benz?

In general, Benz electric steering locks (ESL) are used with EIS W204/ W207/ W212. ESL is damaged in high frequency. In this case, there are two possible reasons and solutions:

1. If the ESL motor is damaged, replace a new motor.
2. If the NEC chip of ESL is locked, renew EIS then replace ESL.

How to tell if the ESL motor is damaged or NEC chip is locked?

Open VVDI MB tool software. Click “Check ESL damage status”.

1. If it shows ESL works normally, generally it means the EIS motor is damaged and you need a new one.

Replace a new motor, what need to buy?

--OEM MB ESL motor+ MB ESL dowel pin+ MB EIS removal tool

This full kit of MB ESL motor is available at:

http://www.eobdtool.co.uk/wholesale/esl-elv-motor-steering-lock-plus-plus-mercedes-ezs-removal-tool.html

2. If it shows that ESL is damaged, then replace ESL.

This new ESL/ ELV emulator is recommended for your replacement:

http://www.eobdtool.co.uk/wholesale/xhorse-elv-emulator.html



How to replace ESL with VVDI MB BGA Tool?

Step1. To replace ESL, you need renew EIS at first, then re-write EIS and personalize ESL, in this way ESL is synchronized. To renew EIS, both key password and erase password are required.

Note: if you do not renew ESL first, but only personalize ESL, the ESL won’t be synchronized.

• Get key password. You can increase key to get it.

Use VVDI MB NEC Key Adaptor to work with VVDI MB BGA tool to get key password.

• Get erase password. In general, we can get the password directly with VVDI MB tool online calculation from server.
• After input the two passwords choose “Infrared” as EIS communication way, then click “save EIS data”, Click "Renew EIS".

Step2.

• Now the EIS is full new, click “load EIS data”, click “Infrared” as communication way to enter new EIS data.
• Click “OBD” as communication way to enter VIN.

Step3. Click “Personalize W204 ESL”

Step4.

After above steps, all EIS and ESL status checkboxes will be tick except the “Activated” checkbox. Insert the original car key hen EIS and ESL is activated. Now you use VVDI MB tool to renew ESL successfully.

Note:

It’s hard to buy Mercedes W204/207 EIS and they are expensive. If you have W204/ 207 all key lost, you can use W212 EIS for replacement.

This is from www.eobdtool.co.uk website Xhorse technical support:How VVDI MB BGA tool renew EIS and replace ESL for Mercedes Benz?

How Xhorse VVDI RKE BOX Program Remote Key for KIA K3

Xhorse VVDI RKE BOX is successfully tested ok to program remote key on Kia K3. Working together with VVDI2 and mini remote programmer, Xhorse VVDI RKE BOX is able to change the original straight key to folding key. How they work? Please go on reading following parts.

Two optional remote key for this test:

1. Xhorse VVDI RKE BOX 6V/9V/12V



2. Xhorse VVDI RKE BOX 3V

Xhorse VVDI RKE BOX’s Application

1. To change the original straight key to folding key.
2. Temporarily to add a new remote control or replace original remote control
3. Only one remote for the original car (such as the Chinese, Besturn, etc.)
4. To seek low-cost remote control instead of the expensive original one

Note: at least one original remote control for use of the kit

The Original Straight Car Key: (with ID70 Electronic Chip )

Connecting Diagram: How Xhorse VVDI RKE BOX connect with VVDI2 and mini remote programmer

Xhorse VVDI RKE BOX Matching Steps:

1. Press SET button on the Host box (in the internal hole at the side of unit), then the buzzer beep twice, to go into the matching state
2. Press any button on the new remote for a while until the buzzer beep continuously. Key matching is completed.
3. Repeat the previous two steps to add another new key.

1. Buzzer
2. Key to be added
3. SET button

Xhorse VVDI RKE BOX Program New Remote Key by OBD

There are several points as follows can be proved after test:

1. VVDI RKE BOX can program remote key correctly without any functional error.
2. The remote control distance can be as long as100 meters.
3. Comparing with the original straight key, Xhorse VVDI RKE BOX makes user more satisfied by better handfeel.

How Xhorse VVDI RKE BOX Program Remote Key for New Alto

Xhorse VVDI RKE BOX is tested working fine to program remote key for New Alto. Working together with VVDI2 and mini remote programmer, Xhorse VVDI RKE BOX is able to change the original straight key to folding key. How they work? Please go on reading following parts.



Two optional remote key for this test:

1. Xhorse VVDI RKE BOX 6V/9V/12V



2. Xhorse VVDI RKE BOX 3V



The Original Straight Car Key: (with ID46 Electronic Chip )

Connecting Diagram: How Xhorse VVDI RKE BOX connect with VVDI 2 and mini remote programmer

 Programming New Remote Key Manually with Xhorse VVDI RKE BOX

Step 1: Open the car door by driver’s seat while keep other doors close.

Step 2: Insert car key into ignition lock cylinder, turn the key to the “ON” position. Pull out the key within 10 seconds.

Step 3: Press and release door lamp switch beside driver’s seat for 3 times and this action should be done within 20 seconds.

Step 4: Repeat Step 2.

Step 5: All car doors automatically close and open for one time. Press the “Unlock” button of remote key and all doors will automatically close and open for one time. Now the new remote key is programmed successfully.

There are several points as follows can be proved after test:

1. VVDI RKE BOX can program remote key correctly without any functional error.
2. The remote control distance can be as long as 100 meters.
3. Comparing with the original straight key, The folding key makes user more satisfied avoiding prick user’s leg in pocket.

Xhorse VVDI RKE BOX Test Report: Program Remote Key for Honda CRV

Xhorse VVDI RKE BOX is successfully tested ok to program remote key on Honda CRV. Working together with VVDI2 and mini remote programmer, Xhorse VVDI RKE BOX is able to change the original straight key to folding remote key. How they work? You can check following parts.

Two optional remote key for this test:

1. Xhorse VVDI RKE BOX 6V/9V/12V



2. Xhorse VVDI RKE BOX 3V

The Original Straight Car Key: (with ID46 Electronic Chip )

Connecting Diagram: How Xhorse VVDI RKE BOX connect with VVDI2 and mini remote programmer

Programming New Remote Key Manually with Xhorse VVDI RKE BOX

Step 1: Insert car key into ignition, turn ignition on and press the”Lock” button on remote controller, then turn ignition off.

Step 2: Turn ignition on for the second time, press the”Lock” button on remote controller, then turn ignition off.

Step 3: Repeat Step 2 twice.

Step 4: After center console has reaction, press the “Unlock” button to finish programming.

If you want to program two remote keys, other steps are the same. But Step 4 should be like that: press both sides of the “Lock” button for one key, center console has reaction, then press the “Lock” button twice for another key.

Xhorse VVDI RKE BOX can program remote box and chip separately While the original key’s remote function will work automatically when car star.

 There are several points as follows can be proved after test:

1. VVDI RKE BOX can program remote key correctly without any functional error.
2. The remote control distance can be as long as 20 meters.
3. Comparing with the original straight key, The folding key makes user more satisfied avoiding prick user’s leg in pocket.
