VVDI2 Key Programmer with BMW FEM/BDC Function User Guide

VVDI2 - BMW FEM/BDC system(function released and available, just no user manual)
Users can refer to following information
(3 steps for make keys:get key info->programming FEM/BDC system->make keys)


1.support make new key with ignition switch(support add spare key and all key lost,
all key lost require ISN)
2.support reset FEM/BDC KM(cluster require reset manually)
3.support erase key(after erase the key position become blank position)
4.support backup coding
5.support restore coding

Notes:
1.backup coding and restore coding can direct operation generally.

2.add keys, reset KM, erase key must programming FEM/BDC system first

3.in FEM/BDC interface, if 'get key info' the type not support, it will show:
customer should use "BMW E-sys software" program FEM/BDC system.
then programming FEM/BDC system with VVDI2-BMW

4.when operation on 'programming FEM/BDC system'interface,
please don't close this software window until all procedures completed.

5.programming FEM/BDC system, require soldering and get eeprom.(FEM 95128 chip, BDC 95256 chip)usually there are 2 same chips on the module,
please refer to the software diagram, select the correct one.

6.programming FEM/BDC system,must restore the original eeprom, restore coding.
if cannot restore coding or after restore coding assemble FEM/BDC module back to
car,but with problem(such as the remote control cannot start the car
or the car with window problem)please use "BMW E-sys software" coding for
FEM/BDC system

7.if connect power to FEM/BDC module, but the relay keep ringing,
please contact technical support for help.usually operation on FEM/BDC should be ok,
just need to programming.

More information, please check on: http://www.eobdtool.co.uk/wholesale/vvdi2-vvdi-pro-commander.html

Xhorse VVDI2 Key Programmer V4.3.0 with FEM BDC Key Learn Function

Xhorse VVDI2 Commander Key Programmer Newly Updated to Latest V4.3.0 and newly add FEM/BDC Key Learn Function for BMW Vehicle, but you need pay to get authorization for these two functions, if you need or interest, please contact our customer service sales@eobdtool.co.uk to confirm

VVDI2 latest software version V4.3.0 update( 2017-08-16 )
*** Require firmware V4.3.0
===== VAG V4.3.0 =====
1. Bugfix

===== BMW V4.3.0 =====
1. Add BMW FEM/BDC system key learning, erase key
2. Add BMW FEM/BDC system reset KM
3. Add FEM/BDC syste backup coding, restore coding
4. Attention: FEM/BDC Key Learn is an option function, If you need, please contact us for confirm



===== Porsche V4.3.0 =====
1. Bugfix

===== PSA V4.3.0 =====
1. Bugfix

===== Transponder Programmer V4.3.0 =====
1. Bugfix

===== J2534 V4.3.0 =====
1. Bugfix

===== Online Upate Tool V4.3.0 =====
1. Bugfix

===== Quick Start V4.3.0 =====
1. Bugfix

Eobdtool.co.uk offer you latest Xhorse VVDI2 Key Programmer V4.3.0 Software Download Link for free: https://mega.nz/#!W1pSRRTL!0n8OX4wshaB1s0O06SDhTR0KvO32nPHZWg4CQjBMdrA

7/17/2017

VVDI2 VAG 4th 5th immo key programming

VVDI2 VAG mainly supports Diagnostic, 4th immobilizer, 5th immobilizer, key learn, BCM remote control, Engine control unit, Kline instrument and immobox, adapt unit, component protection, dump tool etc for VW, Audi, Seat, Skoda. VVDI 2 VAG also support 4th immobilizer Porsche, 4th immobilizer Bentley.
Here are  Xhorse VVDI2 VAG Commander function list and car list.

ALL functions below can be realized with
VVDI II VAG Commander Diagnostic:
Support TP2.0, UDS, KWP1281, KWP2000 protocol, have internal database, can display every item in detail
Identification: read the detail information for target unit
Coding: Set unit coding
Actuator test: Test every small actuator in target unit
Read DTCs: Read trouble codes
Clear DTCs: Clear trouble codes
Basic settings: Complete basic settings for target unit
Security access: Login with PIN code, usually use before adaptation
Adaptation: Set new value in channel
Custom requests: You can write your own commands to unit
Measured values: Display useful information from channel
Advance measure value: Display one item information in group (mainly for UDS protocol)
ECU Flasher: Support flash ECU by OBDII, now we support frf, odx, sgo file
VVDI 2 VAG Key Learn Function:
4th immobilizer system – VW/Audi/Skoda/Seat/Porsche/Bentley all have cars with 4th immobilizer. For 4th immobilizer cluster, support Read/Write EEPROM,
Read/Write immodata, change KM, add new key, read START/STOP key data etc
1) Instrument - CDC3217/CDC3297/CDC3272 + 24C2
2) Instrument - NEC+24C32
3) Instrument - NEC+24C64
4) Instrument - NEC+24C64 (2013-)
5) Instrument– NEC+24C64 (2012 TFT color display)
6) Instrument– NEC+24C64 (2013 TFT color display)
7) Instrument– NEC35xx
8) Instrument– NEC+95320
9) Instrument– Motorola 9S12XHZ512(Golf6 MM7 – 2011)
10) Instrument– NEC+95320(Johnson Controls)
11) Instrument– NEC+95320(JCI – 2013 Bora/Jetta)
12) Instrument– Visteon
13) VW Passat B6/B7/CC Key Learn
14) Touareg/Phaeton/A8/Cayenne/Bentley 4th immobilizer
15) Audi A1 – NEC+24C64
16) Audi A3/TT/R8 – CDC3217/3297 + 24C32
17) Audi A4 – instrument Crypto RB4 (2001+)
18) Audi A4 –instrument Crypto RB8 (2004+)
19) Audi A6/Q7/Allroad – EZS-Kessy
20) Audi Q3
5th immobilizer system – VW/Audi
Support following cars: A4(2009- ), A5, Q5, A6 (2012-), A7, A8(2011-),
Touareg(2011-)
1) OBD method read BCM2
2) BDM method read BCM2
3) Check key status
4) Make Dealer key
5) Key Learning
Key Learn
Support learn dealer key by OBD for most of the vehicles (Auto detect type is supported). Supports following types:
1) Audi A4/A6 (immobilizer box) -1997 - KWP1281
2) Audi A8 (immobilizer box) -1999 - KWP1281
3) Audi A2/A3/A6/TT/Allroad 1997+ - KWP1281
4) Audi A4 1997-2002 - KWP1281VVDI2
5) Audi A4 2002+ - KWP2000
6) Audi A8 1999-2002 - KWP1281
7) Audi A3 - CAN
8) Audi A6/Q7/Allroard 2005+ - CAN (Support OBD lost all key)
9) Seat Altea -2007 - CAN
10) Seat Cordoba
11) Seat Ibiza (immobilizer box) -1999 - KWP1281
12) Seat Ibiza 1999+
13) Seat Leon - KWP1281
14) Seat Leon -2007 - CAN
15) Seat Toledo - KWP1281
16) Seat Toledo -2007 - CAN
17) Skoda Octavia - KWP1281
18) Skoda Octavia II -2007 - CAN
19) Skoda Octavia II 2007+ - CAN
20) Skoda Superb - KWP1281
21) Skoda Roomster - KWP1281
22) Skoda Scout -2007 - CAN
23) Skoda Fabia (immobilizer box) -1999 - KWP1281
24) Skoda Fabia 1999+ - KWP1281
25) VAG (immobilizer box) - KWP1281
26) VAG KWP1281 Immobilizer - KWP1281
27) VAG KWP2000 Immobilizer - KWP2000
28) VW Polo (PCF7935 transponder) - KWP1281
29) VW Touareg/Phaeton/Bentley/Cyenne Kline - KWP2000
30) Audi A8 - CAN
31) VW, Seat, Skoda -2007 - CAN
32) Porsche Cayenne CAN - CAN
33) VW Passat B6/CC – CAN (Support OBD lost all key)
34) VW Passat B6/CC with EDC17/MED17 – CAN (Support OBD lost all key)
35) VW Golf V with Visteon dash
36) Audi A4 (RB8 Instrument Cluster) 2004+ - KWP2000
37) VW, Seat, Skoda 2007+ - CAN (Support OBD lost all key)
38) VW, Seat, Skoda, Audi with VDO NEC 2009+ - UDS (Support OBD lost all key)
39) Lamborghini Gallardo -2005
40) Lamborghini Gallardo 2005+
41) VW with NEC+95320 or Magneti Marelli with Motorola 9S12 2009+ (Support OBD lost all key)
42) Immobilizer box use Megamos - KWP1281
43) New Beetle - KWP2000
44) Johnson Controls with 95320 - UDS (Support OBD lost all key)
45) VW Dashboard with VDO NEC35xx 2013+ - UDS (Support OBD lost all key)
BCM Remote control
Support adapt remote key with 09 unit (4th immobilizer – UDS dashboard)
Special Function
Engine Control Unit
OBD operation: read PIN, CS, MAC, change KM, switch OFF/ON immo, read flash. Also VVDI2 provide auto detect function. Supports following types:
1) ME7.1.1/7.5/7.8 master
2) ME7.1.1/7.5/7.8 slaver
3) MED17
4) MED 9.1 single
5) MED 9.1 master
6) MED 9.1 slaver
7) MED 9.5.10
8) EDC15x
9) EDC16U1
10) EDC16U1 master
11) EDC16U1 slaver
12) EDC16U31
13) EDC16U31 master
14) EDC16U31 slaver
15) EDC16U34
16) EDC16CP/EDC16CP34
17) EDC16CP34 master
18) EDC16CP34 slaver
19) EDC16C4 master
20) EDC16C4 slaver
21) EDC17
22) SIMOS PPD 1.1/1.5(Siemens)
23) SIMOS benzin(Siemens)
24) Porsche 5.2/7.8
K-Line Instrument/Immobox
OBD operation: Read pin code from Kline cluster and immobox, Read/Write EEPROM, change KM etc
Supports following types:
1) Instrument Cluster(VDO66,VDO86, Motometer)
2) VW LT immobilizer box
3) VW Gol immobilizer box
4) White immobilizer box - Audi A4/A6/A8
5) Black immobilizer box Siemens 6 PINs HC05 (Immo1)
6) Black immobilizer box Siemens 6 PINs HC05 - 2400 (Immo1)
7) Black immobilizer box Siemens 6 PINs TMS (Immo1)
8) Instrument Cluster - Audi A4 B5 with Board Computer (-1997)VVDI2 –
9) Instrument Cluster - Audi A4 B5 without Board Computer (-1997)
10) Instrument Cluster - Audi A8 (-10.1996)
11) Instrument Cluster - Audi A8 (11.1996-)
12) Instrument Cluster - Audi A6 B45 (-1997)
13) Instrument Cluster - Magneti Mareli - Shadow 1
14) Instrument Cluster - Magneti Mareli - Shadow 2 (Passat)
15) Instrument Cluster - Magneti Mareli - Shadow 3 (TT)
16) Instrument Cluster - Magneti Mareli - Direct 1996-2000
17) Instrument Cluster - Magneti Mareli - Direct 2000-
18) Instrument Cluster - Sharan/Galaxy (-2000)
19) Instrument Cluster - Audi A4 BOSCH RB4 Crypto 2001+
20) Instrument Cluster - VW Golf 4 BOSCH RBx
21) Instrument Cluster - Audi A4 BOSCH RBx
22) VW Phaeton/Touareg, Bentley Continental, Porsche Cayenne
23) Instrument Cluster - Audi A4 BOSCH RB8 Crypto 2004+
24) Instrument Cluster - Lamborghini Gallardo -2005
25) Instrument Cluster - Lamborghini Gallardo 2005+
Change KM
(4th immobilizer UDS cluster enter 4th immobilizer for change KM, Kline cluster enter Kline cluster and immobox change KM)
Supports following types:
1) CAN Instrument - A4(2009-)/A5/Q5
2) CAN Instrument - A6/Q7/Allroad (-2011)
3) CAN Instrument - A8 (2003-2011)
4) CAN Instrument – Touareg/Phaeton (2007-2010)
5) CAN Instrument – VW Touareg(2010-)/Audi A7/Audi A8(2011-)
6) CAN Instrument– VW Lavida(China)1.6, 2.0 (NEC+24C08)
7) K-Line Instrument– Touareg/Phaeton (-2007)
Adapt Unit
This can adapt 2nd unit to new car, synchronization ECU with immobilizer.
Supports following types:
1) ECU (EDC16/EDC17/MED9/MED17/Simos) – 4th immobilizer ECU
2) Kessy Audi A8, VW Touareg/Phaeton
3) Passat B6 /CC Comfort module
4) A6/Q7/Allroad Transmission gearbox
5) Electrical Steering Colum Lock(PQ35)
6) A6/Q7/Allroad EZS-Kessy
Component protection
1) Generation 1
a) Audi A6/Q7 (2004-2009) - 07 - Control Head (MMI)
b) Audi A6/Q7 (2004-2009) - 09 - Central electric (ILM Fahrer)
c) Audi A6/Q7 (2004-2009) - 0E - Media Player 1 (MP3 CD Changer)
d) Audi A6/Q7 (2004-2009) - 18 - Auxilary Heater
e) Audi A6/Q7 (2004-2009) - 46 - ILM Front passenger (ILM Beifahrer)
f) Audi A6/Q7 (2004-2009) - 06 - Seat Memory Passenger
g) Audi A6/Q7 (2004-2009) - 36 - Memory module (Driver's seat)
h) Audi A8 (2003-2006) - 17 - Instrument Cluster
i) Audi A8 (2003-2010) - 06 - Seat Memory Passenger
j) Audi A8 (2003-2010) - 36 - Memory module (Driver's seat)
k) Audi A8 (2003-2010) - 47 - DSP Bang & Olufsen
2) Generation 2 – Audi A6/Q7/Allroad other control unit, Audi A4/A5/Q5 control unit
Support following modules: Entry And Start Authorization, Airbags, Instruments, Central Electric, Central Comfort Module, Seat Memory Driver,
Auto HVAC, Auxiliary heater, Seat memory passenger, Sound System, Control head, Information Electric, Radio etc
EEPROM dump tool
Support decode ECU EEPROM, Kessy module, J518 module, comfort module, change KM for cluster EEPROM dump
ECU EEPROM: decode PIN, CS, MAC, set new PIN, CS, MAC values
Immobox EEPROM: Kessy module(93C86), J518 module, comfort module, decode PIN, CS, Immo NO., VIN etc
Cluster and immobox EEPROM: decode PIN, KM, and change KM
Support following types:
1) IMMO - KESSY - Audi A8, VW Touareg, VW Phaeton, Porsche Cayenne
Bentley Continental [ 93C86 ]
2) EZS-Kessy Security access code / component protection data [9S12]
3) Comfort module component protection data (Passat B6)
4) ECU EDC16 Set component protection data [95320]
5) ECU EDC16 Immo bypass [95320]
6) ECU EDC16 Mileage calculator [95320]
7) ECU EDC16 Security access code / Checksum calculator [95320]
8) ECU EDC16 Speed Limiter [95320]
9) ECU EDC16 Make virgin [95320]
10) ECU MED 9.x Reset component protection data [95160]
11) ECU MED 9.x Security Code / Checksum calculator [95160]
12) ECU MED 9.x Reset component protection data [95080]
13) ECU MED 9.x Security Code / Checksum calculator [95080]
14) ECU MED 9.x Reset CRYPTED Login/Component protection
15) ECU MED 9.x Reset flash counters
16) ECU MED 9.x Immo Bypass
17) ECU ME 7.x Set component protection data [9P08/95080]
18) ECU ME 7.x Security Code / Checksum calculator [9P08/95080]
19) ECU ME 7.x Immo Bypass [9P08/95080]
20) ECU EDC15 Immo bypass [24C04]
21) Gateway Mileage resetter [95160]
22) Steering lock VW Passat 6 Security code [68HC908]
23) ECU Simos Benzin - Immo bypass
24) ECU Simos 7 - K-line - Login code [93C76] [93C86]
25) ECU Simos 7 - CAN - Security Access Code [93C76] [93C86]
26) ECU Simos 7 - CAN - Reset component protection data [93C76] [93C86]
27) ECU Simos 6.x - Security Access Code
28) ECU Simos 6.x - Reset component protection data
29) ECU Simos PPD1x - Reset component protection data
30) ECU Simos PPD1x - Mileage calculator
31) ECU Simos PPD1x - Security Access Code
32) ECU Simos 9.1 - Reset component protection data
33) ECU Simos 9.1 - Security Access Code
34) ECU Simos 9.2 - Reset component protection data
35) ECU Simos 9.2 - Security Access Code
36) ECU Simos 6.3 - Reset component protection data
37) ECU Simos 6.3 - Security Access Code
38) ECU Simos 3.3 - Security Access Code and CS bytes
39) ECU Magneti Marelli Security Access Code [95320]
40) ECU Magneti Marelli - Reset component protection data [95320]
41) ECU Magneti Marelli Security Access Code [95080]
42) ECU Simos 9.1 (Polo 2007) - Security Access Code
43) ECU Bosch M3.x - Immo bypass
44) ECU MSA1x - Immo bypass
45) IPC VDO VW/Seat/Skoda (2007+) Micronas
46) IPC - CRYPTO Skoda Fabia, Skoda Roomster, VW Polo, Seat Ibiza [ 93C86 ]
47) Magneti Marelli MM4 Instrument mileage and login code [HC12]
48) Audi A3/A4/A6 UKNSI 1995-1997 mileage and login code [93C56]
49) Audi A3/A4/A6 UKNSI 1997-1998 mileage and login code [93C56]
50) Audi A3/A4/A6 UKNSI Japan mileage and login code [93LC56]
51) Audi 100 VDO 1995 mileage [94C46]
52) Golf 3 VDO 1995 mileage [93C46]
53) Golf 3 VDO V3.9 mileage [93C46]
54) Golf 3 Diesel mileage [93C46]
55) Golf 3 Motometer V5.8 mileage [93C56]
56) Polo Motometer mileage [93C46]
57) Polo Motometer 1996 mileage [93C66]
58) Passat VDO 1991 mileage [93C56]
59) Passat VD202 1993 mileage [93C46]
60) Passat GT mileage [93C46]
61) Passat GT mileage [93C56]
62) Caddy mileage [93C56]
63) Corrado VDO 1993 mileage [93C46]VVDI2 – Overview
64) Corrado MotoMeter 1991-1995 mileage [93C56]
65) Corrado VDO 1991-1995 mileage [93C56]
66) Jetta 1994-1996 mileage [93C46]
67) T4 MotoMeter 1996-1997 mileage [93C56]
68) Audi A8 (-2002) - Security access code, Program transponder [24c17]
69) Audi A8 (-2002) - Mileage calculator [24c17]
70) Polo TRW [24c08] - Security access code
71) Black immobilizer box VALEO 24C04 - Security access code
More information, please go to http://www.xhorsetool.com/

6/17/2017

Newest Update Xhorse V4.1.0 Condor XC Mini Key Cutting Machine Software Download


Xhorse Condor XC Mini Key Cutting Machine has been updated to newest version v4.0.1, new functions add. Eobdtool.co.uk provide you V4.0.1 Condor XC Mini Key Cutting Machine Update Software download link for free

Here is Condor XC Mini V4.0.1 Software Download link
https://mega.nz/#!LghkGQoT!nhs6ucmeVwPj5sov3iI5WK2pVsuTe1PziwASvMbOYtI

Condor XC Mini V4.0.1(2017.06.16)Newly Update
------------------------------------------
+Add universal key decode function
+Add M2-D function
+Add motor sensor testing function
*Modify probe/cutter detection
*Fix machine may crash error problem
*Fix HU49 key decode error
*Fix HU66 cutting speed issue
*Fix BW6 cutting error
*Fix TBE1 cutting error
Notes:
1.New update for both SN KM02/KM03 machines
2.New function:Main Interface-Key Duplication-Universal Type
3.Universal Type support decode/cutting parts of home & vehicle keys
4.Please keep the whole key clean and conductivity good(ensure without dust/oil)
5.For one side key(thickness of whole key usually 1.5mm or 2.00mm) please add a shimsiness card under the key,ensure the whole key thickness should more than 3mm

5/23/2017

Xhorse VVDI BGA MB TOOL User Feedback Collection

Xhorse VVDI MB BGA TOOL is welcomed as a professional key programmer for all Benz keys. Considering you may be interested in this tool’s real performance, here is Xhorse VVDI BGA MB tool user feedback collection for you reference.
  • VVDI BGA MB tool do all key lost, add key, renew ECU
  • VVDI MB TOOL read and calculate BGA password, make Benz keys
  • VVDI MB TOOL renew EIS/ESL
  • About VVDI BGA MB tool extra K-line cable
  • Other feedbacks
VVDI BGA MB tool do all key lost, add key, renew ECU
—I got my tool on Monday. So far I tried all key lost for:
3x W212 old —— worked
2x W166 ——- worked
3x W212 new ——- worked
2x W246 ——– worked
From BGA key
W212 old ——- worked
W212 new —— worked
Copy EIS:
W164 new —– worked
W164 old —– worked
W212 new —– worked
W204, W207 —— worked
— I try today to renew ECU ME9.7 with VVDI BGA MB tool…..successful. With 7G boxes works on hurray.
— Add key (20 minutes for one):
E300L…work fine
R500 4 matic…work fine
CLS260…work fine
S320…work fine
E260…work fine
W204 – 2011 – NEW KEY…work fine
— I tested it ok on both car type W203 (year 2003) and W639 (year 2006)
— I used my tool for reading BGA and be keys. It’s very good to renew 7G plates and ECU. And I also tested renew sim4se It is a W203 engine ECU with no screws… one ECU was working renew good other sim4se was reading ok.

VVDI BGA MB tool read and calculate BGA password, make Benz keys
—VVDI MB TOOL is the most fast tool for pass calculation for EZS FSB3 (w166 etc.)
— VVDI MB TOOL support read w164 via OBD without gateway, but you need special adapter to replace gateway as inter unit
— W203: EIS A203.545.05.08 – MCU 1J35D – read PSW – OK
W 220 EIS 215 545 02 08 read PSW via IR – OK. (This but not means all W215 can support. In fact only support parts of this type)
— I’ve been able to read Version 40, 51 and 57 until now with this device.
— Just extracted pass by IR on a W203 within 2 minutes. Wonderful!
— VVDI MB tool password calculation test:
Calculate 221EIS password… work fine
Calculate 212 545 03 08 password… work fine
—Xhorse engineers developed their own algorithm also they have special dedicated server for BGA calculation and FSB3 pass calculation. With VVDI MB TOOL only need at LEAST two calculations for BGA pass and for FSB3 is 100% ok! Other tools need more than 2 calculations. And VVDI server is the fastest at the moment much faster than others.
— I succeeded in making a spare key on a W211 yesterday. But I extracted the pass from the original v51 key and after that the remote function of the original key stopped working (it wasn’t emitting at all and the LED didn’t flash) and it wasn’t starting the car too. I had to renew and program it again to make it work. Finally I got the answer: sometime this happen when NEC is not right soldered back to PCB, or sometime this happen when NEC is not right soldered back to PCB.
— It works well, as Xhorse still have some little problem like dealer pass or erase password calculation but it only few little bugs that I hope they will fix soon.

VVDI BGA MB tool renew EIS/ESL
— I check W204 ESL and it damage, so I bought a second-hand ESL to work with my VVDI MB TOOL. I took steps as follows and it worked.
1 get key password
2 save EIS data with Pass
3 renew EIS
4 write saved EIS data
5 renew ELV
6 in EIS personalize ELV
7 Insert Key all should work
Also you can refer to these, I found from forum.
ESL: Clear TP, Renew ESL (need erase password)
EIS: Renew EIS (need password & erase password)
Write EIS data back, then Personalize W204ESL
(0ne token for read key code)
— Guys I picked it up from forum, share this solution with you all.
I tried to renew w210 EIS and got the key password and erase password, but once I click on renew EIS it says failed how can I renew EIS for Motorola w210?
You should ensure your password is correct then try again. Some types of old K line EIS cannot support renew.

About VVDI BGA MB tool extra K-line cable
— The extra K-line cable is for use for example with some type of older EZS/EIS, which have his diag PIN in OBD plug in different place then standard norm K-line…for example W203, W639….this models you can read through OBD cable only when you use this BLUE extra cable and connect it to other PIN, in case W203 and W639 have EZS/EIS on PIN nr.1 in car OBD plug…or for use on the table on bench then you can read EZS/EIS through cable too….not only by IR.

Other feedbacks
— A friend of mine received his VVDI MB tool , no manual no instruction , no drivers only machine…he managed to install it and in 7 minutes he made BGA key , he was shocked and I am also! For VVDI BGA my friend say is very good with BGA with older models he is not so sure.
— Xhorse support is 10000% ok and very helpful and is quick instantly. Of course need to synchronize time between your country and china and they have many flash and dumps for backup.

5/17/2017

Xhorse VVDI Key Tool Transponder Remote Key Programmer with 5 Remote Keys

Eobdtool.co.uk new released Xhorse VVDI Key Tool, it will replace CN900 Mini and handy baby key programmer, support most common remote types in the market. VVDI Transponder Key Programmer can edit transponder, clone transponder, test frequency, clone Remote, generate remote, generate garage door remote controller, unlock smart card etc. In a word, Xhorse VVDI Key Tool is a device with multi-functions.


Xhorse VVDI Key Tool Basic Information:
Language: English
Software Version: V1.2.8
Hardware/Firmware Version: 1.1



















VVDI Key Tool highlights:
1: Support transponder copying / clone, also support 4th 48 chip online
2: Identify almost transponder in market
3: Support re-programming almost transponder in market
4: New remote re-generating / new remote making


Xhorse VVDI Key Tool functions:
Transponder Generation:
Write most common transponder available in the market including 36, 46, 47, 60, 70

Transponder cloning:
Support 46 42 11 12 4D

Frequency & power tester:
Frequency test of 27-900 MHZ
Power test 300-450 MHZ

Remote cloning:
Rolling code & Fixed code

Generate remote:
More than 400 FCC ID types

Generate Garage door remote:
More than 100 types

Unlock OEM remotes:
NXP keyless & Prox Remotes

If you need more information, please check it here: http://www.eobdtool.co.uk/wholesale/vvdi-key-tool-86288.html

5/11/2017

Need Tokens for VVDI MB BGA Key Tool?

VVDI MB TOOL is the first Tool in the world that can calculate PASSWORD from Mercedes Benz BGA keys and Calculate Password For EZS by IR with ALL KEY LOST

Now support all key lost: w204, w207,W166, W246, W212, W212(old),some W216, W164 2009- future will add more

While some people may misunderstand VVDI MB Tool will charge tokens for each key calculation every time. In fact, it is not truth.

Tokens need only for BGA Keys or for car with Lost keys...
For BGA keys, it will charge one token, while for Lost keys, Two tokens.

BUT, if the car has V51 or V57 Key, and can be opened, simply remove Nec, place on the Nec chair, read password from Key then carry our key calculation.
All this will be free....

If you need tokens, you can check

VVDI2 MB Tool Benz BGA Password Calculation Token(33.99EUR)


If you need more, you can buy 5 tokens together to save money

It is very easy and fast to add the tokens to your VVDI Benz Tool, after your payment, you just need provide the serial number of your VVDI Benz tool, then we will add the tokens to your VVDI MB Tool

Xhorse V4.2.0 VVDI2 Key Programmer Newest Software Release

VVDI2 Key Programmer has been updated to newest version V4.2.0.New function released: Audi A6L, A7, A8L, Touareg lost all key. Here we provide you Newest VVDI 2 V4.2.0 Software Download link for free


VVDI2 V4.2.0 Software Download link
https://mega.nz/#!345DQSbB!yrwasF35hNneR2vwpCWubMDHHHbFPQcMs1P3a_baofc


Xhorse VVDI V4.2.0 Update Information:
*** 2017-05-11
*** Require firmware V4.2.0
************************************************** **********************
===== Note =====
1. Update firmware v4.2.0 require the latest online update tool v4.2.0 version
2. Please download latest install software first then update firmware

===== VAG V4.2.0 =====
1. New function released: Audi A6L, A7, A8L, Touareg lost all key:
(1). Support ECU with MED17/EDC17 type OR Gearbox with 8 speed CVT type
(2). Require BCM2 data, most of them can read with VVDI2 via OBDII
(3). Require ELV data, you can read with VVDI-PROG
(4). Switch ON igniton with OBDII operation, simple and safe
(5). Collect data from internal-can
(6). Fast calculate speed, only need 1 minute
(7). Freee for all customer with immo5 authorize, every success calculate require 100 remote points
2. Bugfix for immo5 keylearn
3. Bugfix for write A4/Q5/A5 KM
4. Bugfix for read pin and CS from ECU (SIMOS PPD1.1/1.5)
5. Bugfix for flash FRF file
6. Bugfix

===== BMW V4.2.0 =====
1. Bugfix

===== Porsche V4.2.0 =====
1. Bugfix

===== PSA V4.2.0 =====
1. Bugfix

===== Transponder Programmer V4.2.0 =====
1. Support Inida Mahindra special transponder ID46: Xylo, Scorpio
2. Immobilizer data tool: add new for Suzuki swift 2012- 93C86
3. Immobilizer data tool: bugfix for Opel IMMO-2 TMS
4. Immobilizer data tool: bugfix for Brilliance Zunchi 93C64
5. Immobilizer data tool: bugfix for Fiat Marea 93C46
6. Copy Transponder support the latest copy transponder(HITAG2)
7. Bugfix

===== J2534 V4.2.0 =====
1. Bugfix

===== Online Upate Tool V4.2.0 =====
1. Update firmware v4.2.0 require the latest online update tool v4.2.0 version
2. Please download latest install software first then update firmware

===== Quick Start V4.2.0 =====
1. Bugfix

Xhorse VVDI2 V4.1.1 Update Information
VAG V4.1.0
BMW V4.1.0
Porsche V4.1.0
PSA V4.1.0
Passthru J2534 V4.1.0
Online Update Tool V4.1.0
Quick Start V4.1.0

You can find the detail update information from Readme in newest software, Mainly include:
1. Add support to read PIN code from santana ECU (Special Function->Engine Control Unit)
2. Bugfix for write A4/Q5/A5 KM
3. Bugfix for OBD read key information from CAS (9389115): Now we dont support read this CAS ID via OBDII, will add soon

5/08/2017

VVDI MB Tool Power Adapter: 18 mins Data Acquisition on W204 W207 all key lost

The day when VVDI MB Tool Power Adapter was available, I paid €123.5 on one, yesterday it arrived me and I tested and verified it works as fine as it claims.

VVDl MB T00L Power adapter Pros (Xhorse claims and I verified working):
1. VVDI MB TOOL power adapter working on FBS3 type all key lost and gateway emulation, support C class, E class, CL, CLK. ML. GL. GLK types etc..
2. VVDI MB TOOL power adapter only needs 18 minutes for data acquisition on W204 W207 all key lost; without this adapter it will cost 150 minutes for data acquisition, save
  nearly 2 hours(150 minutes ->18 minutes)
3. VVDI MB TOOL power adapter for W216, W164 2009- all key lost data acquisition.no need to replug IR adapter many times; without this adapter need to replug IR adapter for 500 times, save a great deal of manpower{500 times->0 time)
4. VVDI MB TOOL power adapter support gateway emulation function, without real gateway you can use this adapter directly OBD communication with W164, W164 2009-, W209, W211 (require special connection cables)
5. VVDI MB TOOL power adapter will keep updating more functions

VVDl MB T00L Power adapter has to work with MB BGA tool, they a full set of MB BGA tool plus Power adapter.
How to connect MB BGA tool with the Power adapter?
here video demo VVDI MB Tool Power Adapter:


4/19/2017

Audi A6L all key lost new key made by VVDI2 and VVDI PROG

This blog will show you steps for VVDI2 Commander and VVDI PROG Key Programmer work together to make a new key for Audi A6L all key lost.
Step1. Open Audi A6L engine cover, find the engine and disassemble it. Remove the engine ECU.

Warm up the ECU edge to open ECU safely, find the 95320 chip as below, desolder the chip and put it on VVDI PROG to read data.

Step2. Open VVDI PROG software, choose correct “Type”, “Brand” and “Chip” at right side. Click “New” and “Read” then “Save” to save the bin file. Remove the chip 95320 from VVDI PROG, solder it back to engine ECU and reinstall ECU to Audi A6L.
Step3. Open Xhorse VVDI2 software and choose “Audi” option. Click “Special Function” on top menu bar. Then click “EEPROM Data Processing Tool”. First you need to calculate the CS code: choose “EEPROM Simons PPDIx- Reset component protection data”.

Step4. Click “Read” and load the bin file that is read out just now, click “Open”. And you can see the CS code as picture, record it with your camera or pen.

Next is to calculate the PIN code. Back to “EEPROM Data Processing Tool” dropdown menu and choose “EEPROM Simons PPDIx- Security Access Code”. Click “Read” and load the bin file, PIN code is read out. Record the code.

Step5. Back to Xhorse VVDI2 software main menu; choose “Key Learning” and “Audi A6/A7” option. Input the CS code and PIN code then you can see the buttons “Learning Key” and “Generate Dealer Key” are working.
Put a new remote key chip into VVDI2 coil. Click “Generate Dealer Key” and it will show success soon.
Step6. This step is going to learn key. Disconnect the short insurance line and connect it again.

Now take out the remote chip and put it close to car’s ignition data coil. Open and close the car door. Turn on ignition and press down brake. Click “Learning Key” and you can see learning success.
Step7. This is the last step: read out EZS-EEPROM (J518) EEPROM to generate the OEM remote control.
Choose chip type “9S1201128” then save EZS-EEPROM (J518) EEPROM file. And start to generate the OEM remote control.
Choose the EEPROM file to open then put the remote control vertically into VVDI2 coil. Click “Open” and “Next”.

The OEM remote control is generated successfully! Assemble it to the new key and test. Now Xhorse VVDI PROG Programmer and VVDI2 Tool together make a new key successfully for Audi A6L all key lost! The car will start and the remote function will work!

How to build EIS/ELV NEC adapter for VVDI MB Tool

HaveEIS/ELVcable tester for your vvdi mb tool? Think it expensive? You can make EIS/ELV NEC adapter by yourself and save a lot.


For Mercedes W204 W212 W221 W164 W166, its necessary to have this adapter to use with the EIS ELV maintenance, Mercedes key programming and key detection.

Here are somediagrams for reference.
W164 / R251 / W221 / W216 with NEC inside

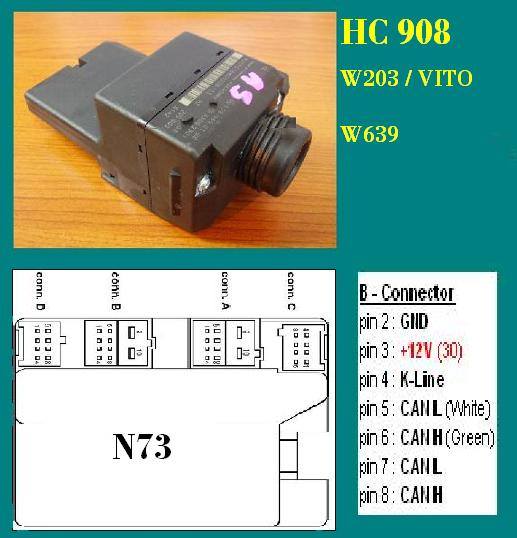

w203 / vito w639 with mcu HC908 inside
w203 with mcu hc912 inside

W204 / W207 / W212 with NEC inside

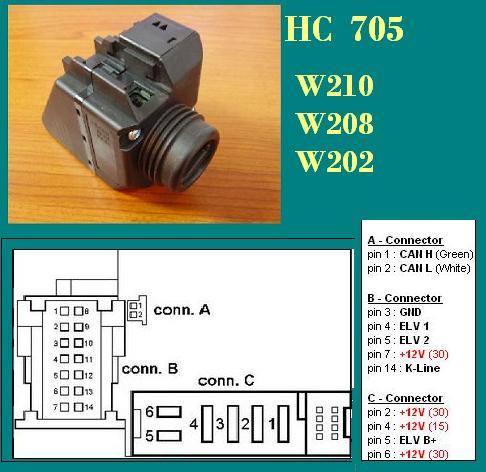

W210 / W208 / W202 with HC705 iside

W211 / W219 / W209 with HC912 inside

W220 / W215 / R230 with HC705 inside
But if you are not interested in building one on your own and want to spend a little bit more money to get a working EIS/ELV Tester, then this is a site that has been confirmed working by some of our mb friends:https://www.eobdtool.co.uk/wholesale/xhorse-elv-emulator.html (xhorse elv adapter); https://www.eobdtool.co.uk/wholesale/vvdi-mb-nec-elv-adaptor.html (elv adapter);https://www.eobdtool.co.uk/wholesale/mb-eis-elv-test-line.html  (eis/elv test cable)
... I wouldn't recommend other sites, although they may work, problem is that they have not been confirmed working yet.Functions of EIS/ELV adapter at eobdtool has been tested for years (many discussion in forums).

4/17/2017

Xhorse V4.1.1 VVDI2 Key Programmer Full Version Software Download

Xhorse V4.1.1 VVDI 2 Key Programmer Full Version software has been update to newest version V4.1.1. Here we shall you Xhorse VVDI2 V4.1.1 Software download link for free

Xhorse VVDI II V4.1.1 Software Download link:
https://mega.nz/!SgJBDaAK!0LZHIrnnUoPKspT680Vh3YGFF_sGBIf378yU8RZ


Xhorse VVDI2 V4.1.1 Update Information
VAG V4.1.0
BMW V4.1.0
Porsche V4.1.0
PSA V4.1.0
Passthru J2534 V4.1.0
Online Update Tool V4.1.0
Quick Start V4.1.0

You can find the detail update information from Read me in newest software, Mainly include:
1. Add support to read PIN code from santana ECU (Special Function->Engine Control Unit)
2. Bugfix for write A4/Q5/A5 KM
3. Bugfix for OBD read key information from CAS (9389115): Now we don't support read this CAS ID via OBDII, will add soon

More information, please check on http://www.eobdtool.co.uk/wholesale/vvdi2-vvdi-pro-commander.html

Mb Key Obd2 Powerful than VVDI Benz BGA Tool and Benz NEC PRO57

Mb Key Obd2 is original Mercedes Benz Key Programmer,much more powerful than Xhorse VVDI Benz BGA Tool, it can calculate password without tokens, except for calculate password for Benz keys,do all key lost, it also can Generate key online,Reset 7G .ISM .ECU MOTOR,Reset ezs, do NEC function as Mercedes Benz NEC PRO57

MB Key OBD2 support all Mercedes Benz Keys from 1998 to 2015
Professional equipment for the manufacture of electronic keys Cars Mercedes
A176 A169 A168 B246 B245 C204 C203 C202 E212 E211 E210 E207 S221 S220 CLA117 CLK209 CLK208 CLS218 CLS219
CL216 CL215 SLK172 SLK171 SL231 AMG190 SLS197 M166 M164 W463 W639  W906 GLS166 GL164 GLK204 GLA156 R251


Update from server free(ask for new adapter )
READ BGA KEY AND ALL KEY LOST TIME 5 MINUTES DIRECT LOAD TO SERVER FREE NO TOKENS
UPDATE FREE FOR ALL USERS
W212 W207 W204 W221 W164 W172 W218 W166 W76 W117 W246 ALL KEY LOST FREE NO TOKENS

Our device can renew Esl used  and personalized without open by k line  free online no tokens
Reset ezs free online no tokens
Reset 7G .ISM .ECU MOTOR  free online no tokens
Generate key online no tokens
Update new software free no tokens


Make key for all car even if car with BGA KEY the new key BY OBD2 exclusive only with our device up to 2015
Read write Reset all model Ezs new and used . Renew used Esl and personalized used and new Esl. by obd2
Reset and personalized w204 w207 w212 emultator
Write vin number on Ezs 7G ISM. reset odometer in Ezs BY OBD2
Renew Ecu motor from 2001 to 2014 all model Diesel & GASOLINE  BY OBD2
Renew 7G all number 722.9 BY OBD2 Renew ism BY OBD2
Read write RESET BE key by IR without soldering and read password
Renew all number Nec key on board and keyless go Generator key include. in 30 sec calculate 8 key
Read Password 51 & 57 Test RF remote control Restoring original data key if lost
Read Password Nec keylessgo 08 -  06 -  42  BGA 62-75-78-79  Nec 51-57  BE KEY CHINA  (without soldering)
All key lost W212 W172 W166 W218 W117 W246 W176(without changing ezs)
All key lost W204 W207 W164 W221 W216(without changing ezs)
All key lost W203 W209 W211 W220(without changing ezs)






























































































































More information, please check on: http://www.eobdtool.co.uk/wholesale/mb-key-obd2-mercedes-benz-key-programmer.html

4/14/2017

Xhorse VVDI2 VAG Commander with VW Module Plus 5th IMMO Authorization

Xhorse VVDI2 VAG Commander mainly support Diagnostic, 4th immobilizer, 5th immobilizer, key learn, BCM remote control, Engine control unit, Kline instrument and immobox, adapt unit, component protection, dump tool etc for VW, Audi, Seat, Skoda. VVDI 2 VAG also support 4th immobilizer Porsche, 4th immobilizer Bentley.

We will check the Xhorse VVDI2 VAG Commander function and support list one by one:

VVDI II VAG Commander Diagnostic:
Support TP2.0, UDS, KWP1281, KWP2000 protocol, have internal database, can display every item in detail
Identification: read the detail information for target unit
Coding: Set unit coding
Actuator test: Test every small actuator in target unit
Read DTCs: Read trouble codes
Clear DTCs: Clear trouble codes
Basic settings: Complete basic settings for target unit
Security access: Login with PIN code, usually use before adaptation
Adaptation: Set new value in channel
Custom requests: You can write your own commands to unit
Measured values: Display useful information from channel
Advance measure value: Display one item information in group (mainly for UDS protocol)
ECU Flasher: Support flash ECU by OBDII, now we support frf, odx, sgo file


VVDI 2 VAG Key Learn Function:
4th immobilizer system – VW/Audi/Skoda/Seat/Porsche/Bentley all have cars with 4th immobilizer. For 4th immobilizer cluster, support Read/Write EEPROM,
Read/Write immodata, change KM, add new key, read START/STOP key data etc
1) Instrument - CDC3217/CDC3297/CDC3272 + 24C2
2) Instrument - NEC+24C32
3) Instrument - NEC+24C64
4) Instrument - NEC+24C64 (2013-)
5) Instrument– NEC+24C64 (2012 TFT color display)
6) Instrument– NEC+24C64 (2013 TFT color display)
7) Instrument– NEC35xx
8) Instrument– NEC+95320
9) Instrument– Motorola 9S12XHZ512(Golf6 MM7 – 2011)
10) Instrument– NEC+95320(Johnson Controls)
11) Instrument– NEC+95320(JCI – 2013 Bora/Jetta)
12) Instrument– Visteon
13) VW Passat B6/B7/CC Key Learn
14) Touareg/Phaeton/A8/Cayenne/Bentley 4th immobilizer
15) Audi A1 – NEC+24C64
16) Audi A3/TT/R8 – CDC3217/3297 + 24C32
17) Audi A4 – instrument Crypto RB4 (2001+)
18) Audi A4 –instrument Crypto RB8 (2004+)
19) Audi A6/Q7/Allroad – EZS-Kessy
20) Audi Q3


5th immobilizer system – VW/Audi
Support following cars: A4(2009- ), A5, Q5, A6 (2012-), A7, A8(2011-),
Touareg(2011-)
1) OBD method read BCM2
2) BDM method read BCM2
3) Check key status
4) Make Dealer key
5) Key Learning


Key Learn
 Support learn dealer key by OBD for most of the vehicles (Auto detect type is supported). Supports following types:
1) Audi A4/A6 (immobilizer box) -1997 - KWP1281
2) Audi A8 (immobilizer box) -1999 - KWP1281
3) Audi A2/A3/A6/TT/Allroad 1997+ - KWP1281
4) Audi A4 1997-2002 - KWP1281VVDI2
5) Audi A4 2002+ - KWP2000
6) Audi A8 1999-2002 - KWP1281
7) Audi A3 - CAN
8) Audi A6/Q7/Allroard 2005+ - CAN (Support OBD lost all key)
9) Seat Altea -2007 - CAN
10) Seat Cordoba
11) Seat Ibiza (immobilizer box) -1999 - KWP1281
12) Seat Ibiza 1999+
13) Seat Leon - KWP1281
14) Seat Leon -2007 - CAN
15) Seat Toledo - KWP1281
16) Seat Toledo -2007 - CAN
17) Skoda Octavia - KWP1281
18) Skoda Octavia II -2007 - CAN
19) Skoda Octavia II 2007+ - CAN
20) Skoda Superb - KWP1281
21) Skoda Roomster - KWP1281
22) Skoda Scout -2007 - CAN
23) Skoda Fabia (immobilizer box) -1999 - KWP1281
24) Skoda Fabia 1999+ - KWP1281
25) VAG (immobilizer box) - KWP1281
26) VAG KWP1281 Immobilizer - KWP1281
27) VAG KWP2000 Immobilizer - KWP2000
28) VW Polo (PCF7935 transponder) - KWP1281
29) VW Touareg/Phaeton/Bentley/Cyenne Kline - KWP2000
30) Audi A8 - CAN
31) VW, Seat, Skoda -2007 - CAN
32) Porsche Cayenne CAN - CAN
33) VW Passat B6/CC – CAN (Support OBD lost all key)
34) VW Passat B6/CC with EDC17/MED17 – CAN (Support OBD lost all key)
35) VW Golf V with Visteon dash
36) Audi A4 (RB8 Instrument Cluster) 2004+ - KWP2000
37) VW, Seat, Skoda 2007+ - CAN (Support OBD lost all key)
38) VW, Seat, Skoda, Audi with VDO NEC 2009+ - UDS (Support OBD lost all key)
39) Lamborghini Gallardo -2005
40) Lamborghini Gallardo 2005+
41) VW with NEC+95320 or Magneti Marelli with Motorola 9S12 2009+ (Support OBD lost all key)
42) Immobilizer box use Megamos - KWP1281
43) New Beetle - KWP2000
44) Johnson Controls with 95320 - UDS (Support OBD lost all key)
45) VW Dashboard with VDO NEC35xx 2013+ - UDS (Support OBD lost all key)


BCM Remote control
Support adapt remote key with 09 unit (4th immobilizer – UDS dashboard)

Special Function
Engine Control Unit
OBD operation: read PIN, CS, MAC, change KM, switch OFF/ON immo, read flash. Also VVDI2 provide auto detect function. Supports following types:
1) ME7.1.1/7.5/7.8 master
2) ME7.1.1/7.5/7.8 slaver
3) MED17
4) MED 9.1 single
5) MED 9.1 master
6) MED 9.1 slaver
7) MED 9.5.10
8) EDC15x
9) EDC16U1
10) EDC16U1 master
11) EDC16U1 slaver
12) EDC16U31
13) EDC16U31 master
14) EDC16U31 slaver
15) EDC16U34
16) EDC16CP/EDC16CP34
17) EDC16CP34 master
18) EDC16CP34 slaver
19) EDC16C4 master
20) EDC16C4 slaver
21) EDC17
22) SIMOS PPD 1.1/1.5(Siemens)
23) SIMOS benzin(Siemens)
24) Porsche 5.2/7.8


K-Line Instrument/Immobox
OBD operation: Read pin code from Kline cluster and immobox, Read/Write EEPROM, change KM etc
Supports following types:
1) Instrument Cluster(VDO66,VDO86, Motometer)
2) VW LT immobilizer box
3) VW Gol immobilizer box
4) White immobilizer box - Audi A4/A6/A8
5) Black immobilizer box Siemens 6 PINs HC05 (Immo1)
6) Black immobilizer box Siemens 6 PINs HC05 - 2400 (Immo1)
7) Black immobilizer box Siemens 6 PINs TMS (Immo1)
8) Instrument Cluster - Audi A4 B5 with Board Computer (-1997)VVDI2 –
9) Instrument Cluster - Audi A4 B5 without Board Computer (-1997)
10) Instrument Cluster - Audi A8 (-10.1996)
11) Instrument Cluster - Audi A8 (11.1996-)
12) Instrument Cluster - Audi A6 B45 (-1997)
13) Instrument Cluster - Magneti Mareli - Shadow 1
14) Instrument Cluster - Magneti Mareli - Shadow 2 (Passat)
15) Instrument Cluster - Magneti Mareli - Shadow 3 (TT)
16) Instrument Cluster - Magneti Mareli - Direct 1996-2000
17) Instrument Cluster - Magneti Mareli - Direct 2000-
18) Instrument Cluster - Sharan/Galaxy (-2000)
19) Instrument Cluster - Audi A4 BOSCH RB4 Crypto 2001+
20) Instrument Cluster - VW Golf 4 BOSCH RBx
21) Instrument Cluster - Audi A4 BOSCH RBx
22) VW Phaeton/Touareg, Bentley Continental, Porsche Cayenne
23) Instrument Cluster - Audi A4 BOSCH RB8 Crypto 2004+
24) Instrument Cluster - Lamborghini Gallardo -2005
25) Instrument Cluster - Lamborghini Gallardo 2005+


Change KM
(4th immobilizer UDS cluster enter 4th immobilizer for change KM, Kline cluster enter Kline cluster and immobox change KM)
 Supports following types:
1) CAN Instrument - A4(2009-)/A5/Q5
2) CAN Instrument - A6/Q7/Allroad (-2011)
3) CAN Instrument - A8 (2003-2011)
4) CAN Instrument – Touareg/Phaeton (2007-2010)
5) CAN Instrument – VW Touareg(2010-)/Audi A7/Audi A8(2011-)
6) CAN Instrument– VW Lavida(China)1.6, 2.0 (NEC+24C08)
7) K-Line Instrument– Touareg/Phaeton (-2007)


Adapt Unit
This can adapt 2nd unit to new car, synchronization ECU with immobilizer.
Supports following types:
1) ECU (EDC16/EDC17/MED9/MED17/Simos) – 4th immobilizer ECU
2) Kessy Audi A8, VW Touareg/Phaeton
3) Passat B6 /CC Comfort module
4) A6/Q7/Allroad Transmission gearbox
5) Electrical Steering Colum Lock(PQ35)
6) A6/Q7/Allroad EZS-Kessy


Component protection
1) Generation 1
a) Audi A6/Q7 (2004-2009) - 07 - Control Head (MMI)
b) Audi A6/Q7 (2004-2009) - 09 - Central electric (ILM Fahrer)
c) Audi A6/Q7 (2004-2009) - 0E - Media Player 1 (MP3 CD Changer)
d) Audi A6/Q7 (2004-2009) - 18 - Auxilary Heater
e) Audi A6/Q7 (2004-2009) - 46 - ILM Front passenger (ILM Beifahrer)
f) Audi A6/Q7 (2004-2009) - 06 - Seat Memory Passenger
g) Audi A6/Q7 (2004-2009) - 36 - Memory module (Driver's seat)
h) Audi A8 (2003-2006) - 17 - Instrument Cluster
i) Audi A8 (2003-2010) - 06 - Seat Memory Passenger
j) Audi A8 (2003-2010) - 36 - Memory module (Driver's seat)
k) Audi A8 (2003-2010) - 47 - DSP Bang & Olufsen

2) Generation 2 – Audi A6/Q7/Allroad other control unit, Audi A4/A5/Q5 control unit
Support following modules: Entry And Start Authorization, Airbags, Instruments, Central Electric, Central Comfort Module, Seat Memory Driver,
Auto HVAC, Auxiliary heater, Seat memory passenger, Sound System, Control head, Information Electric, Radio etc


EEPROM dump tool
Support decode ECU EEPROM, Kessy module, J518 module, comfort module, change KM for cluster EEPROM dump
ECU EEPROM: decode PIN, CS, MAC, set new PIN, CS, MAC values
Immobox EEPROM: Kessy module(93C86), J518 module, comfort module, decode PIN, CS, Immo NO., VIN etc
Cluster and immobox EEPROM: decode PIN, KM, and change KM
Support following types:
1) IMMO - KESSY - Audi A8, VW Touareg, VW Phaeton, Porsche Cayenne
Bentley Continental [ 93C86 ]
2) EZS-Kessy Security access code / component protection data [9S12]
3) Comfort module component protection data (Passat B6)
4) ECU EDC16 Set component protection data [95320]
5) ECU EDC16 Immo bypass [95320]
6) ECU EDC16 Mileage calculator [95320]
7) ECU EDC16 Security access code / Checksum calculator [95320]
8) ECU EDC16 Speed Limiter [95320]
9) ECU EDC16 Make virgin [95320]
10) ECU MED 9.x Reset component protection data [95160]
11) ECU MED 9.x Security Code / Checksum calculator [95160]
12) ECU MED 9.x Reset component protection data [95080]
13) ECU MED 9.x Security Code / Checksum calculator [95080]
14) ECU MED 9.x Reset CRYPTED Login/Component protection
15) ECU MED 9.x Reset flash counters
16) ECU MED 9.x Immo Bypass
17) ECU ME 7.x Set component protection data [9P08/95080]
18) ECU ME 7.x Security Code / Checksum calculator [9P08/95080]
19) ECU ME 7.x Immo Bypass [9P08/95080]
20) ECU EDC15 Immo bypass [24C04]
21) Gateway Mileage resetter [95160]
22) Steering lock VW Passat 6 Security code [68HC908]
23) ECU Simos Benzin - Immo bypass
24) ECU Simos 7 - K-line - Login code [93C76] [93C86]
25) ECU Simos 7 - CAN - Security Access Code [93C76] [93C86]
26) ECU Simos 7 - CAN - Reset component protection data [93C76] [93C86]
27) ECU Simos 6.x - Security Access Code
28) ECU Simos 6.x - Reset component protection data
29) ECU Simos PPD1x - Reset component protection data
30) ECU Simos PPD1x - Mileage calculator
31) ECU Simos PPD1x - Security Access Code
32) ECU Simos 9.1 - Reset component protection data
33) ECU Simos 9.1 - Security Access Code
34) ECU Simos 9.2 - Reset component protection data
35) ECU Simos 9.2 - Security Access Code
36) ECU Simos 6.3 - Reset component protection data
37) ECU Simos 6.3 - Security Access Code
38) ECU Simos 3.3 - Security Access Code and CS bytes
39) ECU Magneti Marelli Security Access Code [95320]
40) ECU Magneti Marelli - Reset component protection data [95320]
41) ECU Magneti Marelli Security Access Code [95080]
42) ECU Simos 9.1 (Polo 2007) - Security Access Code
43) ECU Bosch M3.x - Immo bypass
44) ECU MSA1x - Immo bypass
45) IPC VDO VW/Seat/Skoda (2007+) Micronas
46) IPC - CRYPTO Skoda Fabia, Skoda Roomster, VW Polo, Seat Ibiza [ 93C86 ]
47) Magneti Marelli MM4 Instrument mileage and login code [HC12]
48) Audi A3/A4/A6 UKNSI 1995-1997 mileage and login code [93C56]
49) Audi A3/A4/A6 UKNSI 1997-1998 mileage and login code [93C56]
50) Audi A3/A4/A6 UKNSI Japan mileage and login code [93LC56]
51) Audi 100 VDO 1995 mileage [94C46]
52) Golf 3 VDO 1995 mileage [93C46]
53) Golf 3 VDO V3.9 mileage [93C46]
54) Golf 3 Diesel mileage [93C46]
55) Golf 3 Motometer V5.8 mileage [93C56]
56) Polo Motometer mileage [93C46]
57) Polo Motometer 1996 mileage [93C66]
58) Passat VDO 1991 mileage [93C56]
59) Passat VD202 1993 mileage [93C46]
60) Passat GT mileage [93C46]
61) Passat GT mileage [93C56]
62) Caddy mileage [93C56]
63) Corrado VDO 1993 mileage [93C46]VVDI2 – Overview
64) Corrado MotoMeter 1991-1995 mileage [93C56]
65) Corrado VDO 1991-1995 mileage [93C56]
66) Jetta 1994-1996 mileage [93C46]
67) T4 MotoMeter 1996-1997 mileage [93C56]
68) Audi A8 (-2002) - Security access code, Program transponder [24c17]
69) Audi A8 (-2002) - Mileage calculator [24c17]
70) Polo TRW [24c08] - Security access code
71) Black immobilizer box VALEO 24C04 - Security access code

More information, please check on: http://www.eobdtool.co.uk/wholesale/vvdi2-key-programmer.html
